Compatible Brand:
xiaomi,Blackberry,Meizu,LG,ZTE,HTC,Huawei,Nokia,Lenovo,SONY,Motorola
USB Ports:
1
Support Quick Charge Technology:
No
Output:
5V/1A
Input:
5V/2A
Quality Certification:
RoHS,CE,FCC
Output Interface:
USB
Type:
Wireless Charger
Brand Name:
PAKSHWE
Power Source:
USB
Model Number:
BRCI02
Model:
Qi Wireless Receiver
Use:
For Qi Wireless Charger/Transmitter
Output:
1000mA (Max)
Compatible:
For Micro USB Female Phones
Compatible Model List 1:
For HTC Desire C Desire V LG G2 LG G3 OnePlus 1
Compatible Model List 2:
For Oppo R9 Vivo Meizu Samsung Micro USB Celular Android
Compatible Model List 3:
For Huawei Sony Xperia Z Ultra Micro USB Phone
Compatible Model List 4:
For Xiaomi all micro usb phones
Type of Chipset:
TI
Position of Micro USB:
Bottom, Top, Left and Right (see image)

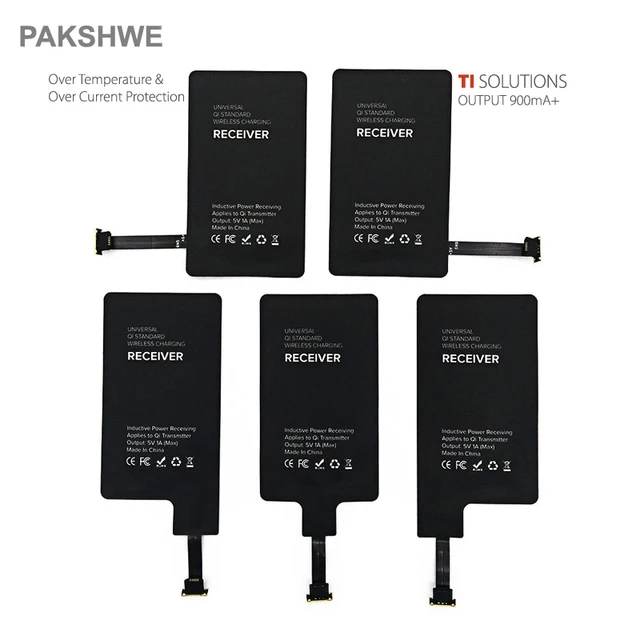

Android Qi Wireless Charger Receiver Micro USB Charging Adapter TI-Chip for Huawei All Android Micro USB Smartphones Universal
Note: Receiver Only, wireless charger not included. (it can't be used alone, it should be used with a qi wireless charger)
** It is NOT AS FAST AS Tranditional wired plug-in, because its max. charging current is 1A and 73% conversion rate **
Specifications
TI CHIPSET BUILIN which makes it the best qi receiver at present.
Safety: Over-temperature protection(Max. 45 degrees), current limiting protection(1A Max.)
Micro USB Port: Exclusive mold build the micro-usb interface, a combination of metal and ABS, more solid, more fit.
Easy Installation:1.Put Receiver into the mobile phone charging interface. 2.Put Receiver affixed to the back of the phone folded flat stable.
Why Choose TI Chipset(Model: BQ51013B): charge stability, better temperature control.
Choose the model you need
Position 1A
location: Micro USB interface in the middle of top/bottom side.
Feature: Narrow-inteface upwards.
Position 1B
location: Micro USB interface in the middle of top/bottom side.
Feature: Narrow-inteface downwards.
Position 2A
location: Micro USB interface in the left of top or right of bottom side .
Feature: Narrow-inteface upwards.
Position 2B
location: Micro USB interface in the left of top side or right of bottom side .
Feature: Narrow-inteface downwards.
Position 3A
location: Micro USB interface in the right of top side or left of bottom side .
Feature: Narrow-inteface upwards.
Position 3B
location: Micro USB interface in the right of top side or left of bottom side .
Feature: Narrow-inteface downwards.
Position 4A
location: Micro USB interface in the top of left side or bottom of right side.
Feature: Narrow-inteface upwards.
Position 4B
location: Micro USB interface in the top of left side or bottom of right side.
Feature: Narrow-inteface downwards.
Position 5A
location: Micro USB interface in the bottom of left side or top of right side .
Feature: Narrow-inteface upwards.
Position 5B
location: Micro USB interface in the bottom of left side or top of right side .
Feature: Narrow-inteface downwards.
Features
Specially designed for the Android Smartphones wirless charging.
Perfect fitting the Micro-USB interface of Android phone. (check photos which one your micro usb interface is)
Micro USB Type A/B interface options as shown photos.
Works well with any Qi-enabled charger
Safety: Over-temperature protection(45 degree centigrade), current limiting protection(1A Max.)
Why Choose TI Chip(Model: BQ51013B): charge stability, better temperature control.
Compatible for: All Micro USB Mobile Phone. Such as for Huawei Samsung Galaxy S2 S3 S4 S5 Note 2 3 4 LG G2 G3 OnePlus One HTC Sony etc.
Easy Installation:1.Put Receiver into the mobile phone charging interface. 2.Put Receiver affixed to the back of the phone folded flat stable.
Specifications
Suitable for ---------------------------phone of Micro 5pin
Wireless distance: -------------------5mm
Electricity-transformation: ----------More than 70%
Charging voltage: --------------------DC5V
Charging Current: -------------------800-1000mA
Charging time:------------------------about 4 hours (or depends on phone battery capacity)
Reaction temperature:--------------- -10 ~ 45 degree centigrade
Working ambient humidity: -------- below 76%
Working life: -------------------------- Charge & discharge above 4000 times
Executive standard: ----------------- Qi wireless-charging standard
Important Note:
Please ensure the receiver is put in the magnetic inductive center of the qi charger when charging(coil to coil).
Please use a 5V 1.5A or 2A AC Adapter to conntect your qi charger.
Qi wireless charging may not be as fast as a traditional plug-up under the existing technology, we do not accept any dispute initiated by charging slowly.
Device gets hot when charging that is normal.
